Name: Vacuum Watch Waterproof Tester
Brand: HAVOMEC
Price: 3215.59 USD
Availability: InStock

GLOBAL SHIPPING AVAILABLE

Vacuum Watch Waterproof Tester

$3,215.59

Free Shipping Worldwide

Vacuum Watch Waterproof Tester-Designed for Detecting Watch Seal and Leakage

The 3rd Generation Vacuum Watch Waterproof Tester features advanced vacuum and air-pressure technology, delivering faster, safer, and more precise leak detection.

Unlike traditional water immersion testers, it simulates water pressure through air compression, completely eliminating the risk of water damage to the movement.

An ideal choice for professional watchmakers and service centers pursuing accuracy, efficiency, and reliability.

Product Features

3rd Vacuum Watch Waterproof Tester One-click completion of leak-tightness testing and printing of test results.
Equipped with a pressure curve visualization system, it features dual operation of built-in programs and custom modes, flexibly adapting to various testing scenarios.
When used with the ATEC air compressor, it offers simple and efficient operation along with multi-language support, comprehensively enhancing the testing experience.

Leakage Visualization

Operates on positive and negative air pressure, unlike traditional water-based testers.

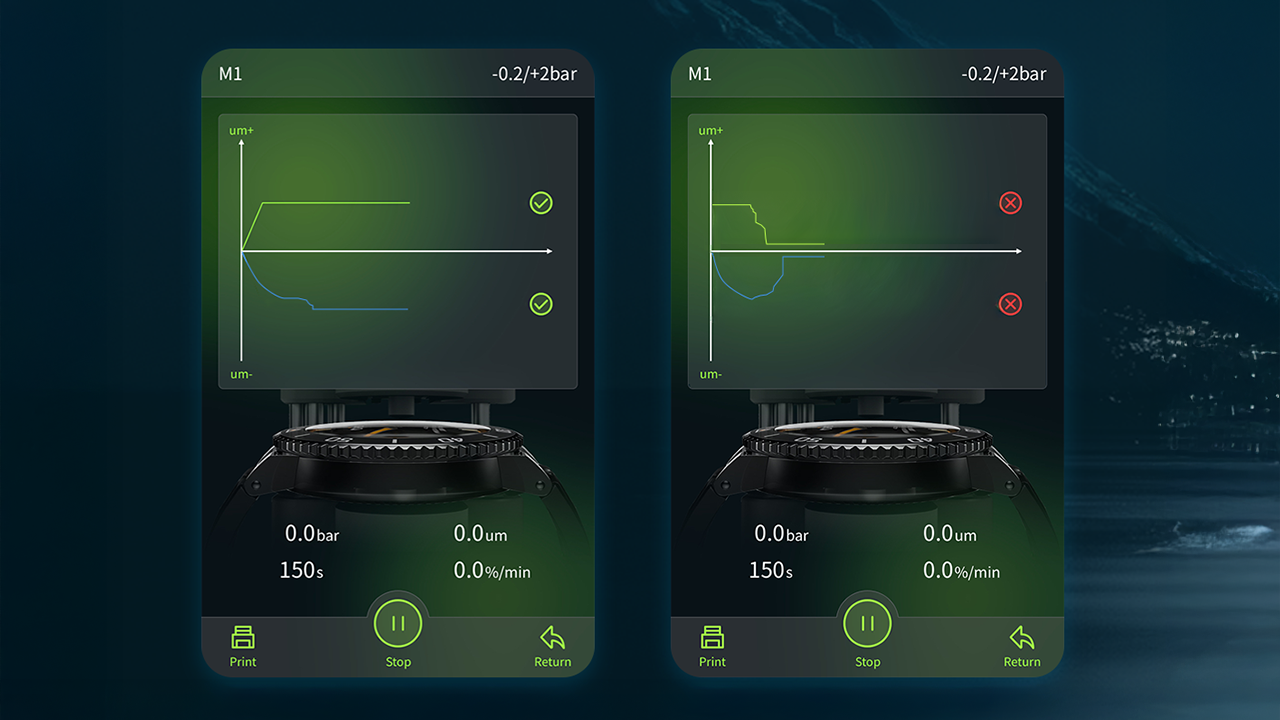

Real-time display of positive and negative pressure curves

Custom Operation

Fast · Simple · Efficient

Easily simulate scenarios based on different environments

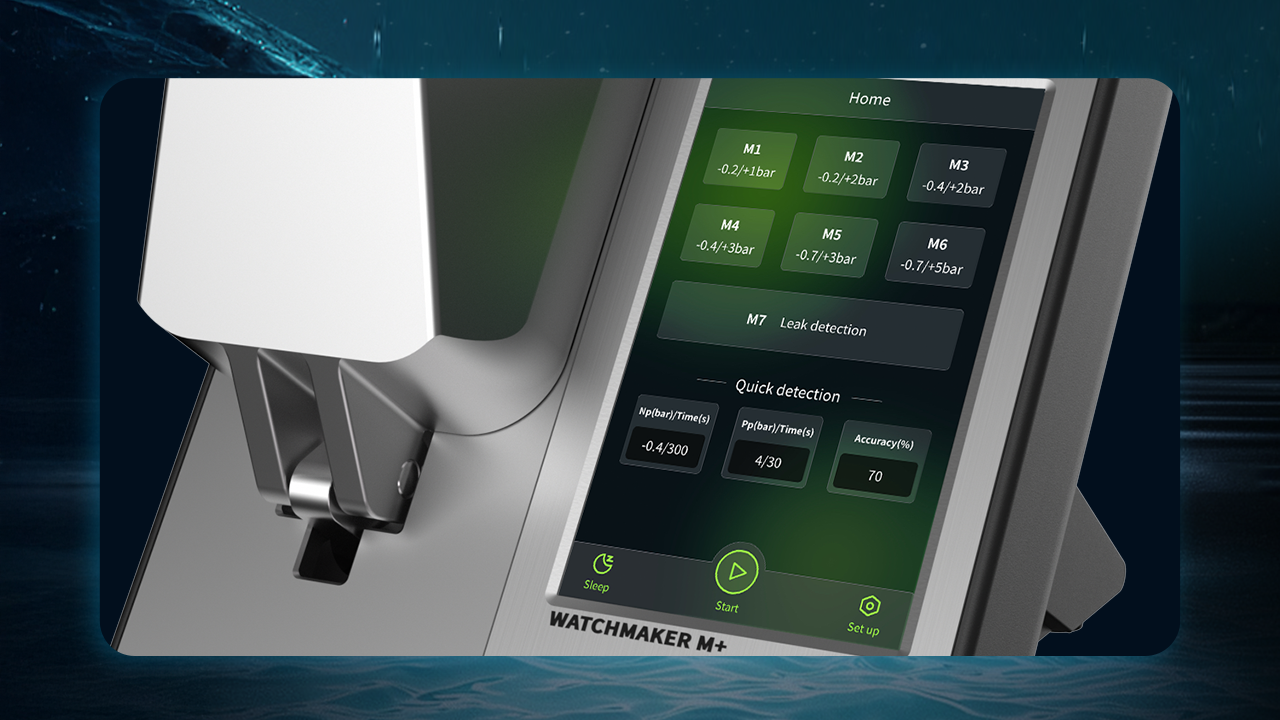

Smart Operating System

Combining built-in preset programs with custom modes, pressure values and test durations can be adjusted freely.

With a large-screen UI,it displays pressure and displacement curves in real time, intuitively presenting the testing process.

Supporting Functions

Automatic Sensor Triggering and Chamber Closure

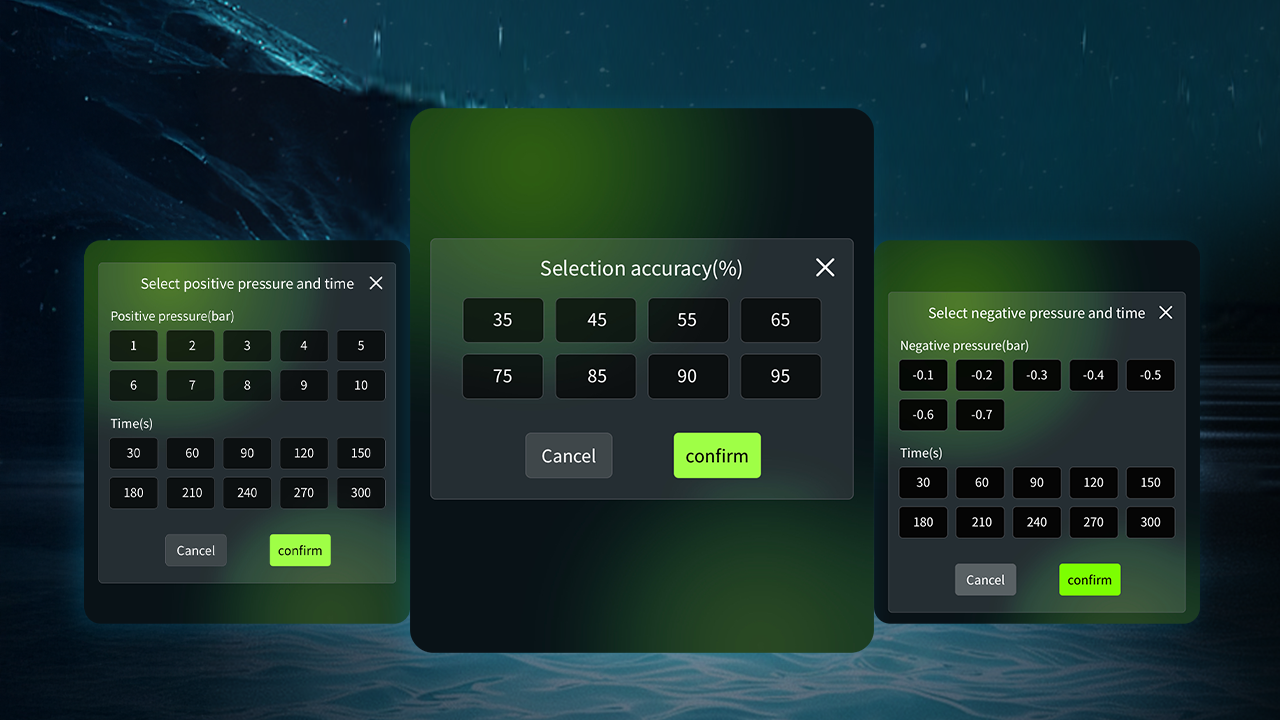

Quick Selection - Simple and Fast Parameter Settings

Fixed Test Procedure

Customizable Settings for Test Pressure, Time and Accuracy

General

Display	7-inch color screen with a resolution of 1280 × 800, with capacitive touch function
Languages	Chinese, English, French, German, Spanish, Hindi, Arabic
Host Interface	USB Port ×1, Power Port ×1, Air Hose Port ×1 (6mm Diameter)
Dimension	233 × 235 × 245mm
Weight	7kg
Peripheral Devices	Thermal Printer
Watch Size Restrictions	Diameter: 70mm Thickness: 30mm Width: 85mm

Measurement

Measurement Principle	Analyze the watch case under vacuum or pressure, consider its deformation behavior.
Test Pressure	–0.7bar ~ +10bar
Unit	bar
Working Conditions	Temperature: 15–35℃ Relative Humidity: Maximum 80%

Packaging Parameters

Overall Dimensions	310 × 310 × 340mm
Total Weight	9kg
Packing List	Main unit ×1, Printer ×1, Main Unit Power Supply ×1, USB Cable ×1, Air Tube ×10m, Gasket ×2, Printing Paper ×2 Rolls, Converter Head ×1 pack
