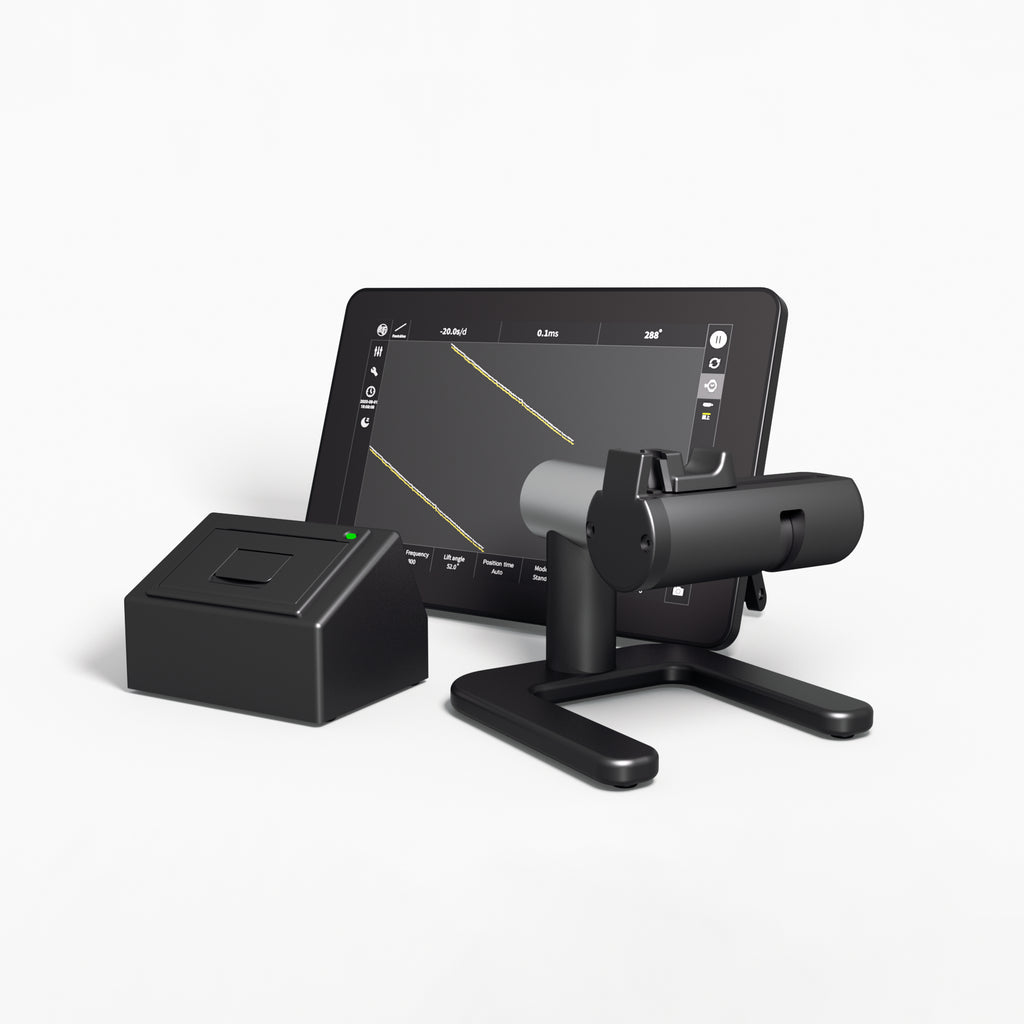

Professional Timegrapher – Mechanical Watch Timing Machine for Accuracy Testing

The world's first timegrapher equipped with OTA online upgrade function, it features core performance of accurately detecting timing errors, amplitude,and polarization, and is fully compatible with mainstream movement types.

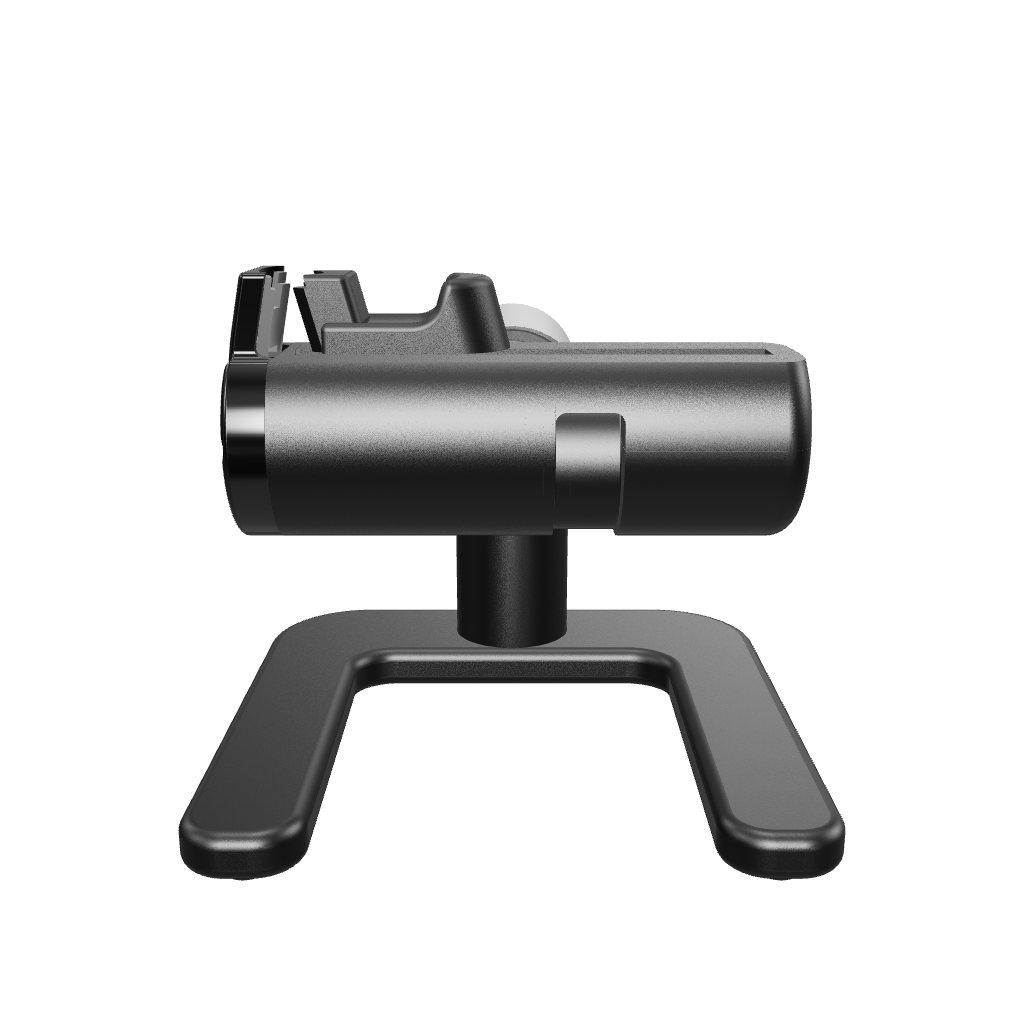

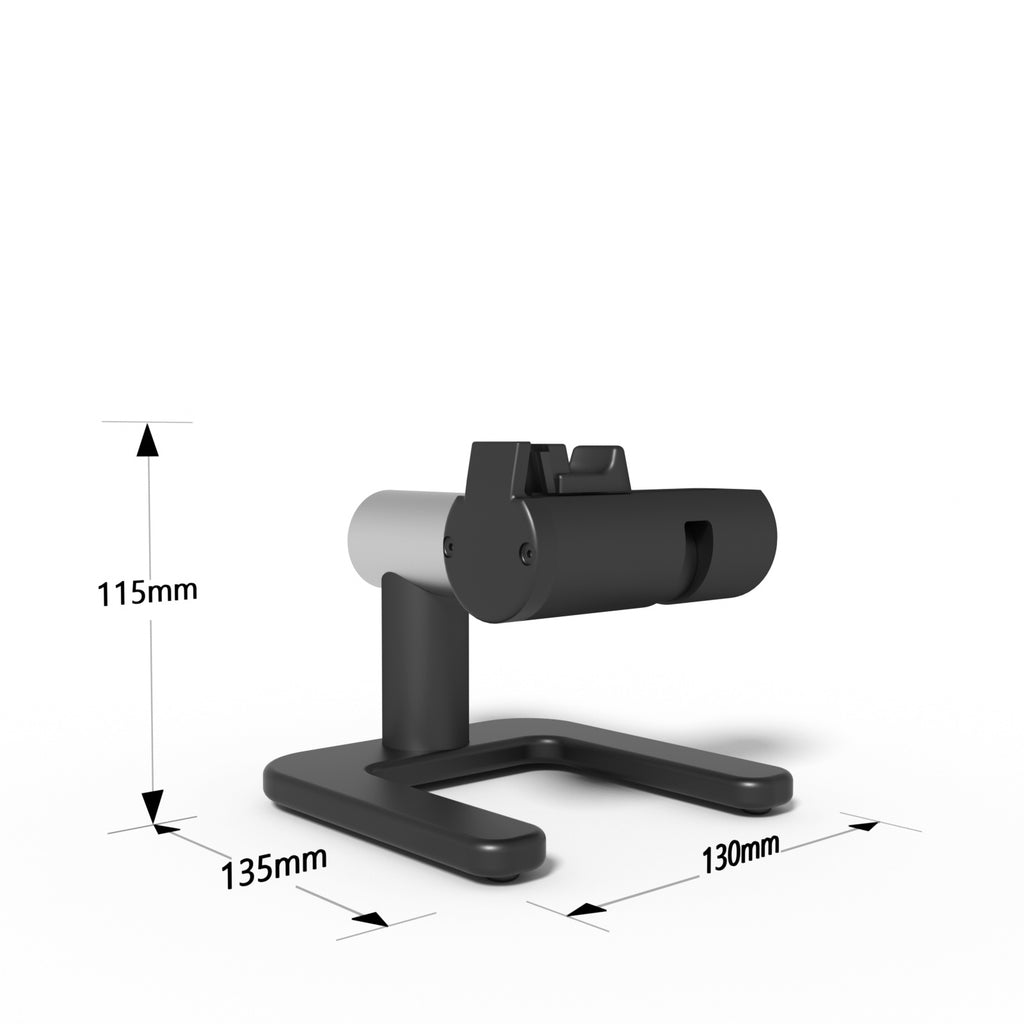

The device is equipped with a 360˚ adjustable pickup, enabling precise

detection from all angles without dead zones;

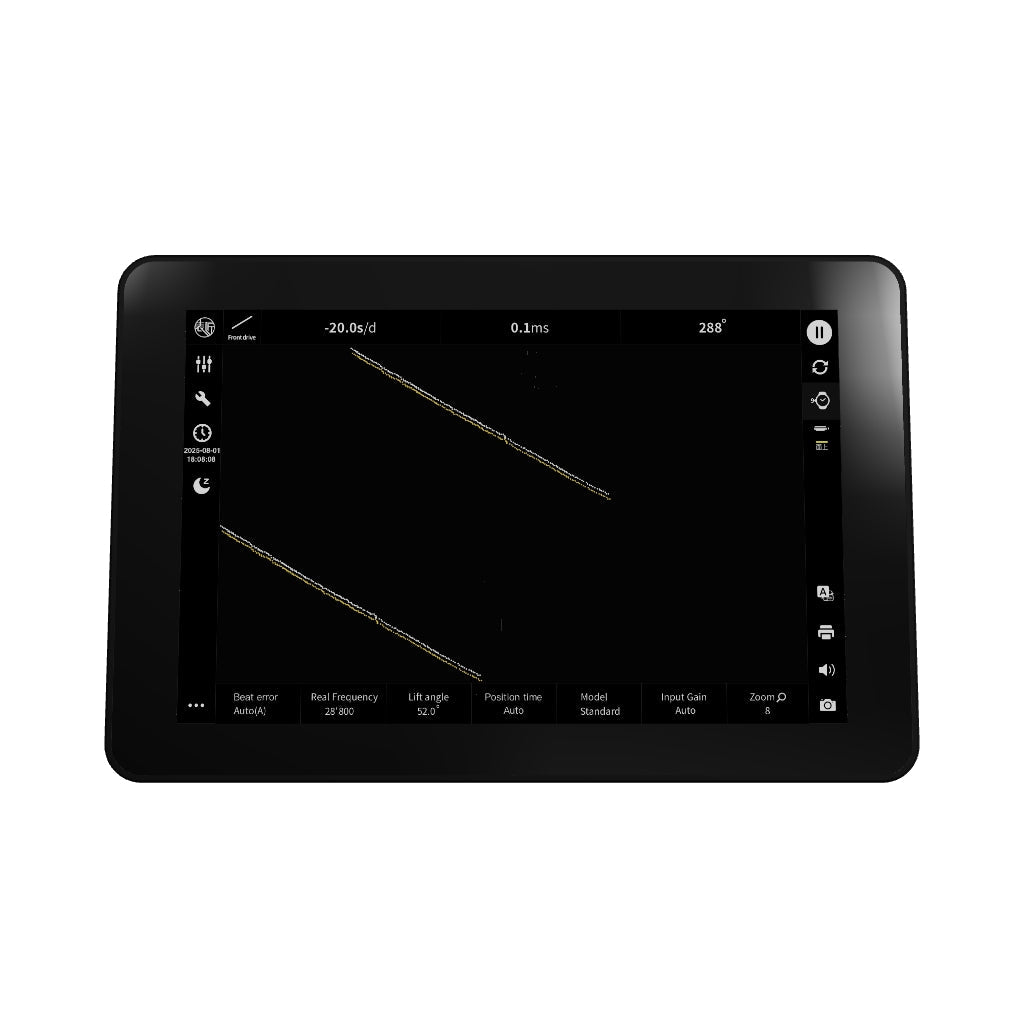

it is fitted with an automatic orientation sensing system, supports

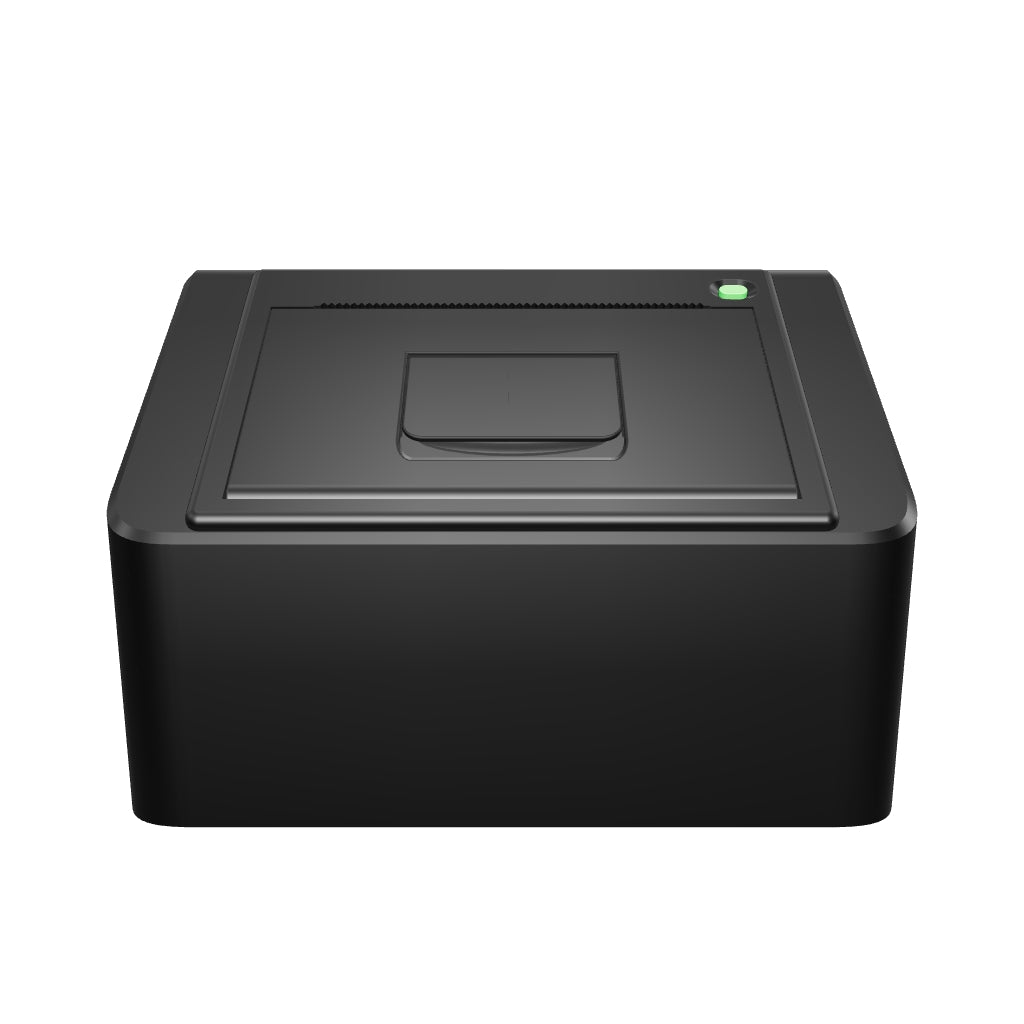

multiple line display modes as well as front-drive and rear-drive dual-mode display, and offers multi-language support. Its six-position test data can be directly output for printing, withsupport for custom print header settings, efficiently meeting the personalized needs of professional scenarios.

An acoustic microphone with integrated electronic components for mechanical watch measurement;

Featuring a built-in gyroscope. It rotates smoothly and silently throughout its entire range of motion;

Supporting 360° horizontal rotation and 180° vertical

rotation;

A single USB cable enables both data transfer and power delivery；

Designed for securing large, heavy watches, it features a sturdy hand rest for two-handed operation and ergonomic motion adjustment.
